Understanding ESD Testing and Its Importance
Electrostatic Discharge (ESD) testing is a critical component of ensuring the reliability and safety of electronic devices across numerous industries. In a digital age where our reliance on technology continues to grow, the ramifications of insufficient ESD protection can lead to device failure, loss of data, and significant financial repercussions. At Stancer Testing-Lab, we recognize the importance of comprehensive ESD Testing to safeguard your products and facilitate your compliance with international regulatory standards. Whether you’re developing cutting-edge telecommunications gadgets or automotive electronics, understanding ESD testing is crucial for maintaining market integrity.
What is ESD Testing?
ESD testing measures an electronic device’s susceptibility to electrostatic discharges, which can occur due to a variety of factors such as human contact, environmental conditions, and manufacturing processes. The primary goal of ESD testing is to ensure that devices can withstand sudden bursts of static electricity without suffering damage or malfunction. Testing typically follows guidelines provided by international standards such as IEC 61000-4-2, which outlines the procedures for conducting these evaluations.
Why ESD Testing Matters for Electronic Devices
ESD testing is essential because electronic devices are exposed to electrostatic discharges during both manufacturing and end-user environments. Failing to adequately test and protect against ESD can result in:
- Device Failure: ESD can cause immediate damage or latent failures that manifest later in a product’s lifecycle.
- Financial Loss: Issues arising from ESD can lead to costly recalls, repairs, and damage to brand reputation.
- Safety Hazards: In sectors like medical technology, ESD failures can pose serious safety risks to the user.
Common Standards and Regulations for ESD Compliance
Compliance with industry standards is a fundamental aspect of ESD testing. The following are key regulations that organizations should consider:
- IEC 61000-4-2: This standard details the testing requirements for immunity to ESD, including test methods and severity levels.
- ANSI/ESD S20.20: This regulation outlines an ESD control program to minimize ESD risks in manufacturing and handling environments.
- MIL-STD-883: Specific to military applications, this standard defines ESD testing procedures for microelectronic devices.
The ESD Testing Process: Step-by-Step
The ESD testing process typically involves several key stages, all designed to ensure that a device can withstand electrostatic discharges. Stancer Testing-Lab employs rigorous methodologies to carry out comprehensive ESD testing, guiding businesses through this crucial compliance process. To learn more about effective ESD Testing, let’s delve into the specifics.
Preparing for ESD Testing: Key Considerations
Before conducting ESD tests, certain preparatory steps must be followed to guarantee accurate results. This includes:
- Defining the Device Under Test (DUT): Identify the specific characteristics of the device that will influence test parameters.
- Establishing Test Objectives: Clearly outline what aspects of ESD performance are critical for the product.
- Setting Up the Testing Environment: Ensure that the testing space is controlled to prevent external ESD interference.

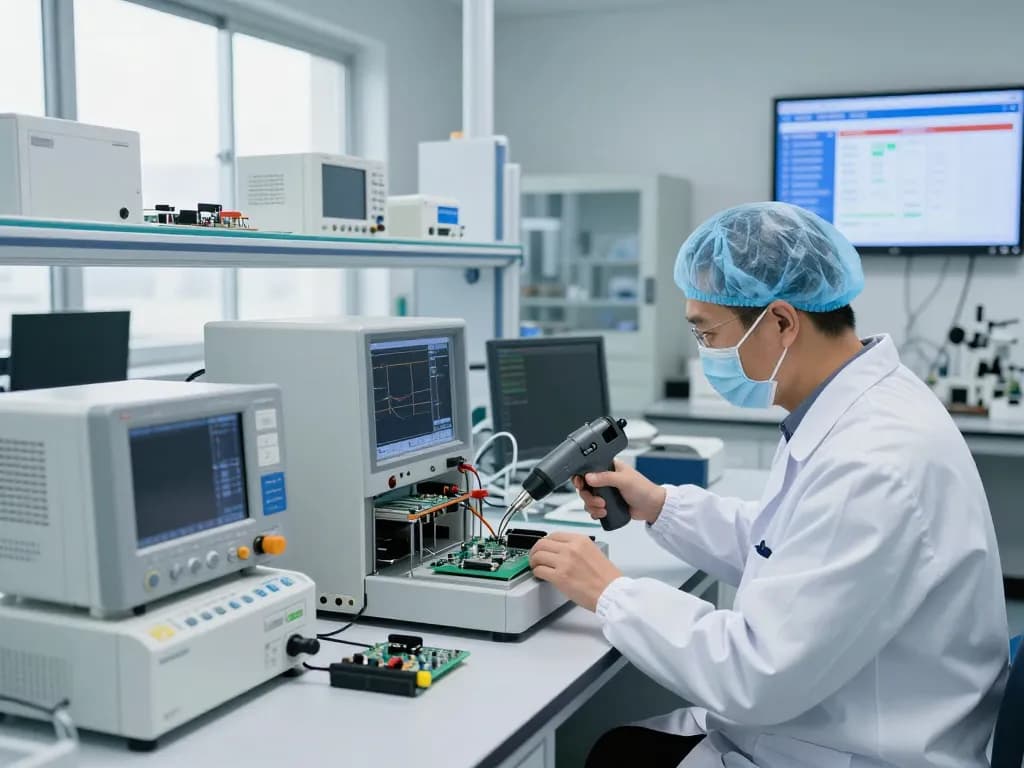

Conducting ESD Tests: Methods and Equipment
The primary methods for conducting ESD tests include:
- Air Discharge Testing: Involves discharging static electricity from a specified distance to assess the DUT’s immunity.
- Contact Discharge Testing: Measures how well the device can withstand direct discharges.
Essential equipment used in ESD testing includes ESD simulators, oscilloscopes, and controlled environments to maintain test integrity.
Analyzing ESD Test Results: What to Look For
Post-testing, the analysis phase is crucial to interpret the results. Essential factors to review include:
- Operational Performance: Check if the DUT continued to function normally after exposure to ESD.
- Damage Assessment: Identify any physical or performance-related damages that occurred during testing.
- Compliance with Standards: Ensure the results align with the relevant standards and regulations.
Challenges in ESD Testing and How to Overcome Them
Despite its importance, ESD testing does come with hurdles that businesses must navigate. Understanding these challenges can facilitate effective solutions.
Common Obstacles in Achieving ESD Compliance
Some frequent challenges include:
- Complex Product Designs: Innovative electronics often incorporate advanced technology that complicates ESD testing procedures.
- Environmental Variability: Fluctuations in humidity and temperature can affect test outcomes.
- Resource Limitations: Not all organizations have access to sophisticated ESD testing facilities, which can hinder compliance efforts.
Misconceptions About ESD Testing Procedures
There are also misconceptions that can lead to inadequate testing, such as:
- Believing that ESD protection is only necessary for consumer electronics.
- Underestimating the importance of a comprehensive ESD control program.
Best Practices for Effective ESD Testing
To overcome the above challenges and enhance compliance results, consider these best practices:
- Invest in Quality Testing Facilities: Partnering with accredited testing labs like Stancer Testing-Lab ensures access to advanced equipment and expertise.
- Implement Robust ESD Control Programs: Establish procedures and training for personnel to minimize ESD risks during production.
- Continuous Monitoring and Improvement: Regularly review and update compliance practices to adapt to new technologies and standards.
Future Trends in ESD Testing: What to Expect in 2026
Looking ahead to 2026, several trends in ESD testing are beginning to emerge, shaping how organizations approach compliance.
Emerging Technologies in ESD Testing
Innovations in ESD testing technology, including automated testing systems and improved simulation techniques, are expected to enhance accuracy and efficiency.
Regulatory Changes Impacting ESD Compliance
With the continual evolution of technology, regulatory standards for ESD compliance may tighten, necessitating proactive adaptation by manufacturers.
Preparing for Future ESD Standards
As standards evolve, organizations should focus on:
- Investing in continuous training for employees on the latest testing methodologies.
- Collaborating with industry experts to stay ahead of regulatory changes.
Conclusion and Call to Action
In summary, ESD testing is not just a regulatory requirement; it is fundamental to ensuring the longevity and reliability of electronic devices. As technology progresses, so too must our approach to safeguarding products against ESD. For businesses seeking expert guidance, consultation, and comprehensive testing services, Stancer Testing-Lab is ready to assist. Reach out to us today to request a quote and ensure that your products meet the highest compliance standards and maintain their performance.
Recap of ESD Testing Essentials
Understanding the fundamentals of ESD testing, from preparation to execution and analysis, is vital for achieving compliance and protecting your investments. The landscape of ESD testing will only grow more complex as we approach 2026, making it essential to engage with knowledgeable partners.
Consulting with ESD Testing Experts
By collaborating with testing professionals, your organization can navigate the complexities of ESD compliance effectively, ensuring that your products are prepared for the evolving market demands.
Requesting Your ESD Testing Quote Today
Don’t wait until it’s too late; ensure your devices are ESD compliant by contacting us for a personalized consultation. We look forward to supporting your journey toward ESD compliance and product excellence.
